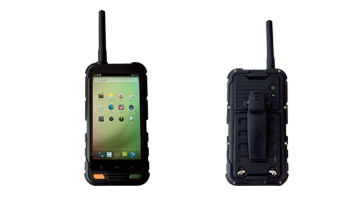

Handheld Wireless Terminal 7101
Ⅰ. Introduction

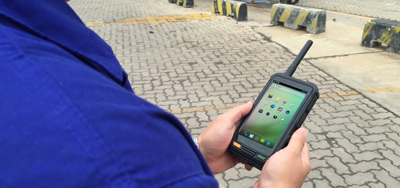

HWT7101 is a new generation of handheld wireless terminal with integrative function of data and voice transmission, supporting LTE/WiFi wireless data transmission, LTE trunking voice, RFID scanning, HD shooting, GPS positioning, etc., and it can be widely used for port, warehouse, logistics, manufacture industries. HD-HWT7101 is equipped with 5”highlighting LCD, capacitive touch screen, and Android open source operating system. The structure design of IP67 grade, Corning Gorilla Glass, 2W speaker can meet the harsh outdoor and industrial environment.
Ⅱ.Product Features
Android 4.4 OS
Support WiFi 802.11b/g/n, Bluetooth 3.0
Support TD-LTE data and trunking voice
Support LTE/TD-SCDMA/WCDMA/GPRS, etc.
5"highlighting LCD and capacitive touch screen, visible in high brightness
5M HD camera
Support RFID scanning
Support GPS and BDS
Large-capacity lithium battery, with long stand-by time
All-sealed design, IP67 grade
Ⅲ. Application Solutions
Terminal Wireless Tallying
Warehouse & Logistics Management
TD-LTE Broadband Trunking Solution for Port
Physical Parameters
Dimensions
165x86x28 (mm)
Body Material
High Strength PC+TPU
Weight
0.6kg
Working Temperature
-20~65℃
Storage Temperature
-30~80℃
Humidity
5~95% (non-condense)
IP Grade
IP67
Fall Protection
120CM
System Parameters
CPU
Freescale imx6 Dual
Core 0.8/1/1.2G
RAM
DDR3L 1/2GB 1066MT/s
Storage
8G EMMC + TF Card
OS
Android 4.4
Display
5”LCD,Resolution 1280×720
Touch Screen
Capacitive Touch
Screen, Corning Gorilla Glass
GPRS(Optional)
900M/1800MHz
3G(Optional)
TD-CDMA/WCDMA/EVDO
WIFI
Support IEEE802.11b/g/n
Bluetooth
BT v3.0+HS
LTE(Optional)
CMCC/CUCC/CTCC
TD-LTE
1785MHz~1805MHz,
support data, voice and video transmission.
Camera
5M Pixel
GNSS
GPS, BDS
RFID(Optional)
ISO 18000-6C
(18000-6B optional )
Audio
1×Mic, 2W Speaker
Sensor
G sensor, Light
Sensor
USB Port
1×USB OTG
Power Port
2×Power Contacts
Power Input
DC5V
Battery
4000mAH
