Vehicle-Mounted Wireless Terminal 8005

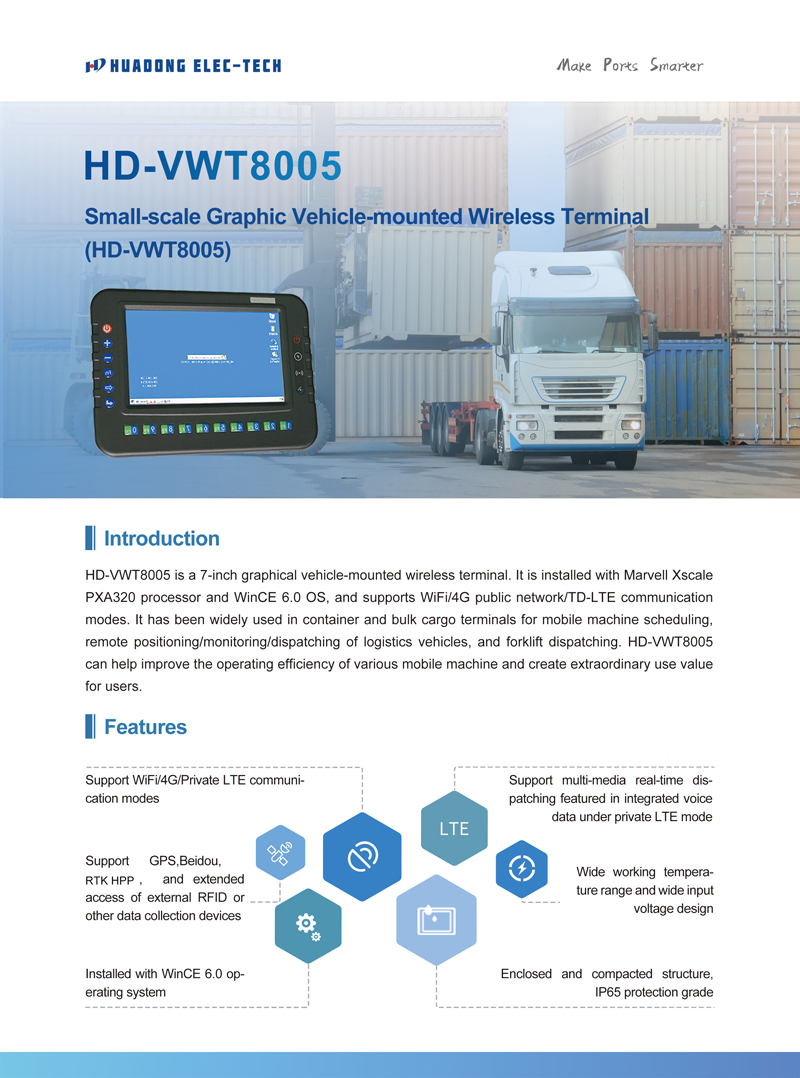

I. Introduction

HD-VWT8005 is a small-sized graphical vehicle-mounted wireless terminal, supports multiple communication modes of WiFi, GPRS/3G/4G and TD-LTE, etc., and can be widely used for port truck dispatching, warehouse forklift dispatching, remote positioning and dispatching of logistics vehicles, mobile machinery operations of container terminal, to improve the work efficiency of assorted vehicles and create incredible customer value.

II. Features

● ARM PXA 320 CPU

● 256MB DDR RAM & 512MB NAND Flash

● Adopt full sealed aluminum case design, reach the waterproof and dustproof grade IP65

● Industrial grade 7-inch LCD widescreen, 800*480 pixels

● Touch screen with 10 combination keys of function key and numeric key, supports touch screen and keypad inputting

● Support WiFi, TD-LTE, GPRS/3G communications

● In TD-LTE mode, simultaneously supports voice communication and data transmission

● Provides SDK to users for developing standard WinCE applications

III. Solutions

★ Wireless Vehicle Dispatching

★ DGPS Freight Management System Solution for General Cargo Terminal

★ TD-LTE Broadband Trunking Solution for Port

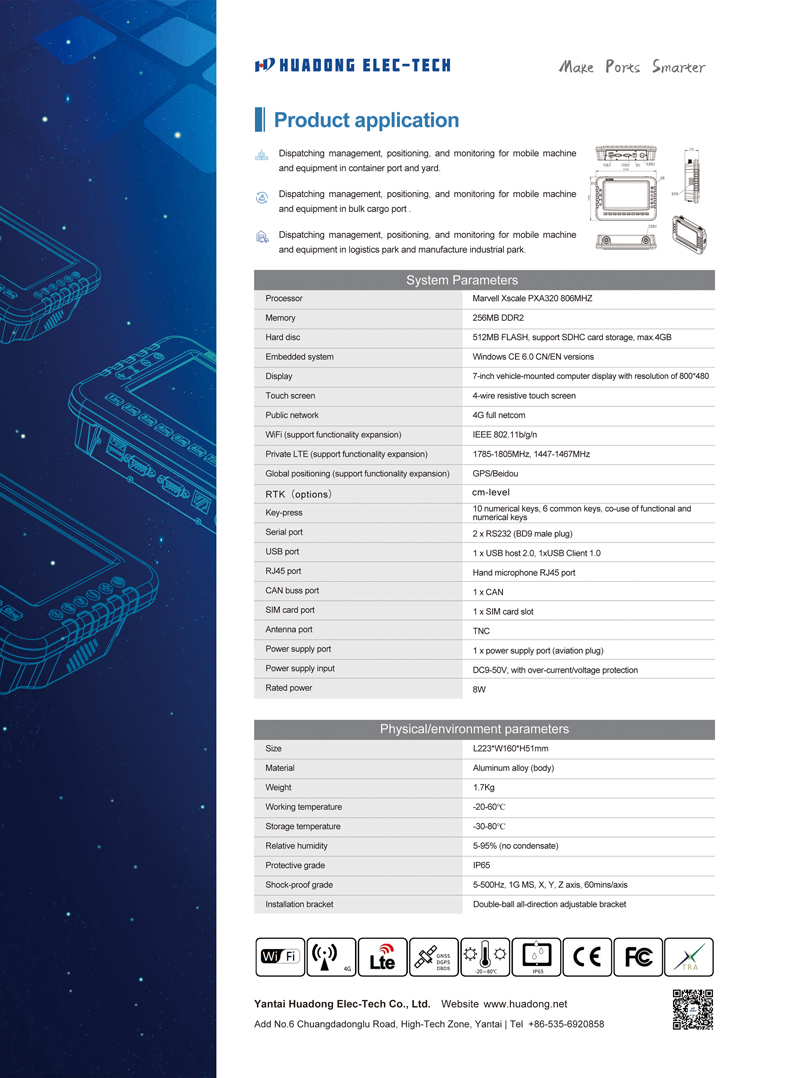

Physical Characteristics

Dimensions

222X159X51mm
Body Material
Aluminum Alloy
Weight
1.7kg
Working Temperature
-20~60℃
Storage Temperature
-30~80℃
Humidity
5~95%(non-condense
IP Grade
IP65
Shock Resistance
5~500Hz,1G MS,X,Y,Z axis,60mins/axis
Bracket
360 degree adjustable bracket, 120X120X150mm
Hardware configurations
CPU
Marvell Xscale PXA320
RAM
256MB DDR
FLASH
Onboard 512MB FLASH, Support SDHC card, up to 4G
Embedded System
WINCE6.0
Display
7-inch vehicle-mounted LCD, 800*480 pixels, LCD backlight
Touch Screen
4 lines resistance touch screen, sensitiveness, durable and anti-scrape
Keypad
10 combination keys of function key and numeric key
GPRS
900M/1800MHz
3G
WCDMA, EVDO
WIFI
IEEE802.11b/g
TD-LTE
1785~1805MHz, 14471467MHz
DGPS Satellite Positioning
Positional accuracy ≤0.5m, Cool boot time <60 sec, Warm boot time 30 sec
Serial Port
2xRS232
USB Port
1xUSB host 2.0  1xUSB CLIENT
Audio Port
1xAudio Port, Voice over LTE
Antenna Interface
TNC
Power Port
1x Power Port
CAN Port
1x CAN port
Input Power
DC17V-50V
Rated Power
7W
